MAG540w3 set-top boxes are high-performance devices under the Linux operating system. An Amlogic S905Y4-B chipset and quad-core ARM Cortex-A35 processor allow you to use the device for several months without worrying about having to restart it. The set-top box plays content in high resolution, supports eight-channel surround sound, and allows you to choose a convenient way of Internet connection.
Clear and colorful image
With the MAG540w3 you can watch content in 4K format with a frame rate of 60 fps. Due to HDR technology, the colors on the screen will be as vivid as possible, while support of the HEVC codec allows you to play video without delays, even at low data transfer rates.
Surround sound
The set-top box supports Dolby Digital PlusTM technology. This means you can connect seven loudspeakers and a subwoofer or compatible modern TV and enjoy eight-channel sound as clear as in a movie theater.
Wired and wireless internet connectivity
The model is equipped with an Ethernet port and integrated Wi-Fi. The cable connection provides stable connectivity with a data transfer rate of 100 Mbps. The Wi-Fi module operates in two frequency bands: 2.4 GHz and 5 GHz (up to 550 Mbps).
Peripheral support
Two USB 2.0 ports allow users to connect a mouse, keyboard, memory cards and other peripherals to the set-top box. This provides users with additional convenience in control and text input.

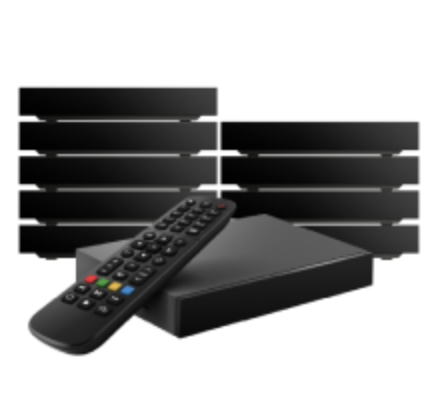

A pack of 10 devices is a favourable offer for operators: it will allow you to buy modern powerful devices at a reasonable price. To order a set of 10 MAG540w3 set-top boxes, please contact our manager.
Dimensions
Width/depth/height, (mm)
120x78x21
Weight, g
110
Hardware
Chipset
Amlogic S905Y4-B
Processor
Quad-core ARM Cortex-A35, 2,000 MHz
Performance
16 500 DMIPS
RAM
1 GB LPDDR4
Flash memory
4 GB eMMC
Software
Operating system
Linux 4.9
Middleware supported
Pre-integrated Ministra TV platform. Image enhancement with operator’s applications, customization, or full replacement available
Interfaces
HDMI 2.1, 100 Mbps Ethernet, USB 2.0 × 2, built-in 2T2R ac Wi-Fi module
Sources of media content
PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices
Audio & video
Audio codecs
MPEG L1/L2/L3, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
Audio formats
MP3, MPA, M4A, OGG, WAV, AAC
Video modes
2160p, 1080i, 1080p, 720p, 576p, NTSC, PAL
Video сodecs
AV1, H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support
