MAG520w3

The product you selected is currently unavailable.

Price: $71.40
Availability: This product is back-ordered; it is unavailable for ordering at this time please come back or continue shopping.
Prod. Code: MAG520w3

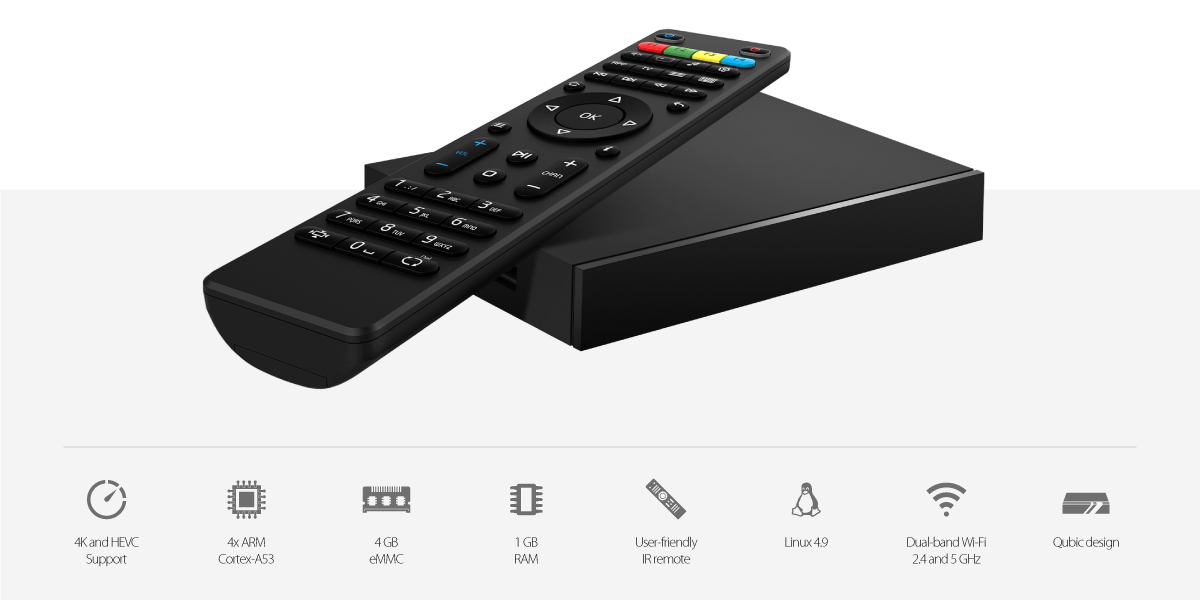

MAG520w3: a high-performance Linux set-top box with Wi-Fi

The new MAG media players are powered by the Amlogic S905X2 chipset, which gives 25% better performance than the previous generation. MAG520w3 is equipped with a quad-core ARM Cortex-A53 CPU running at 1,900 MHz that guarantees months of uninterrupted operation.



Realistic picture

With MAG520w3, viewers can enjoy 4K HDR video in its full glory with high-definition pictures packed with detail, high contrast, and vivid colors.




Built-in HEVC codec

With the built-in HEVC codec, the set-top box easily handles demanding 4K video even at bandwidths as low as 5 Mbps.



Ethernet and Wi-Fi connectivity

MAG520w3 supports both wired internet connections via Ethernet, and wireless over Wi-Fi. For wired connections, the data rate reaches 100 Mbps. The built-in dual-band Wi-Fi module (2.4 GHz and 5 GHz) ramps up the transfer speed to 550 Mbps.





Dolby Digital PlusTM surround sound

The MAG520w3 media player is compatible with modern audio systems and supports 8-channel Dolby Digital Plus™ sound, totally immersing viewers into movies, TV shows, concerts, and sporting events.

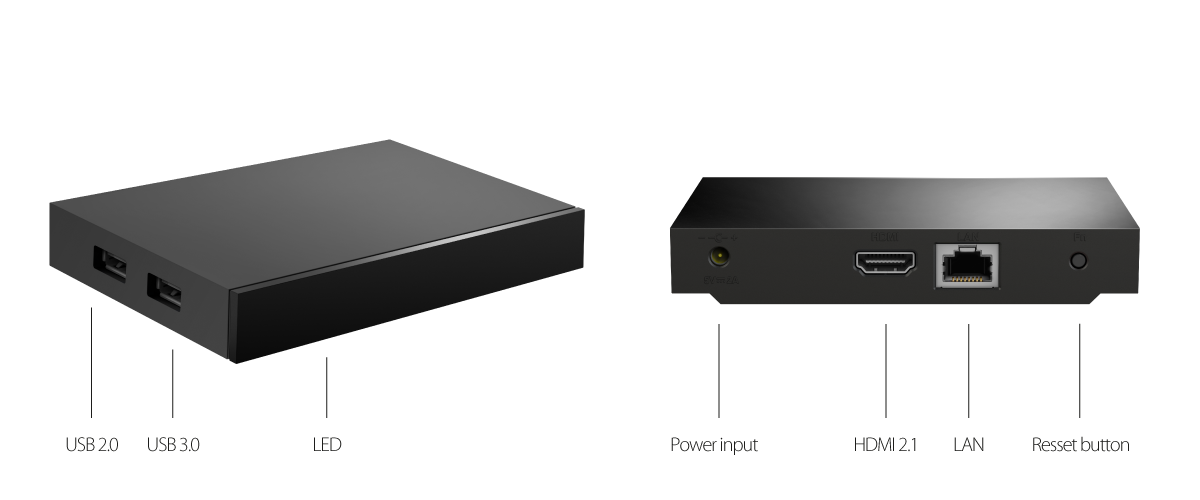

USB ports for peripherals and storage

The set-top box has two USB ports. The USB 2.0 port is suitable for peripherals like a keyboard and mouse, while the USB 3.0 port is the perfect choice for memory cards and removable drives owing to its higher data rates.





Dimensions
Width/depth/height, (mm) 120x78x21
Weight, g 110
Hardware
Chipset Amlogic S905X2
Processor Quad-core ARM Cortex-A53, 1,900 MHz
Performance 18 400 DMIPS
RAM 1 GB DDR3
Flash memory 4 GB eMMC
Software
Operating system Linux 4.9

Middleware supported Pre-integrated Ministra TV platform. Image enhancement with operator’s applications, customization, or full replacement available
Interfaces
  HDMI 2.1, 100 Mbps Ethernet, USB 3.0 × 1, USB 2.0 × 1, built-in 2T2R ac Wi-Fi module
Sources of media content
  PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices
Audio & video
Audio сodecs
Audio formats MP3, MPA, M4A, OGG, WAV, AAC
Video modes 2160p, 1080i, 1080p, 720p, 576p, NTSC, PAL
Video сodecs H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support
Video containers TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP
Image formats JPEG, PNG, BMP, RAW
Subtitles DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captioning
Playlist formats M3U, M3U8, PLS, CUE



Standard set
  MAG520w3 set-top box, user manual, HDMI cable, 5V 2A power adapter, remote control, 2x AAA batteries, packaging
