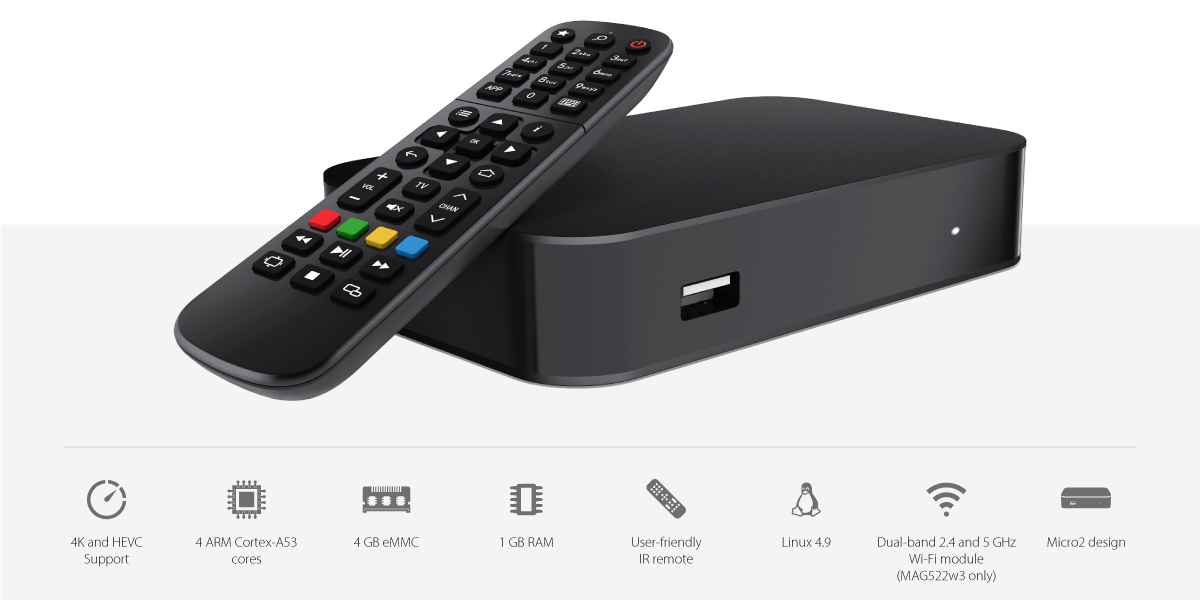

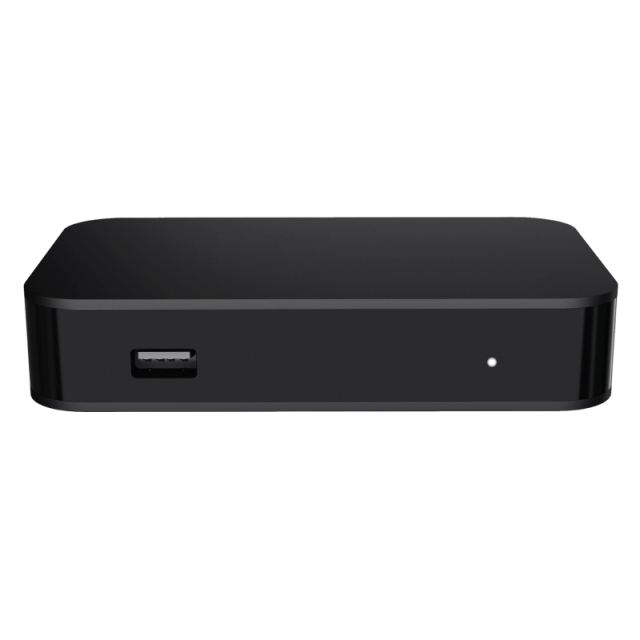

MAG522w3: a high-performance Linux set-top box with Wi-Fi
The Series 5 MAG devices pack a powerful Amlogic S905X2 chipset, making for a 25% higher performance against the previous generation units. MAG522w3 can run continually for months without rebooting.
High resolution
MAG522w3 supports 4K video for viewers to enjoy maximum detail in their favorite videos. The precise rendering of even the tiniest details adds realism to what happens on the screen.
H.265 support
The HEVC technology doubles the efficiency of video compression and decoding compared to the previous-generation H.264 codec, enabling MAG522w3 to play 4K content even at a lower Internet bandwidth.
Wired and wireless connectivity
The device can connect to the Internet via a high-speed Ethernet port or over Wi-Fi. The wired connection ensures data rates up to 100 Mbps. For Wi-Fi connections, the users can choose from the 2.4 GHz and 5 GHz bands.
Eight-channel audio
MAG522w3 supports Dolby Digital Plus™ and is compatible with modern sound systems with seven speakers and a subwoofer. A sound this powerful opens up new possibilities and creates a spatial audio feel.
Peripherals support
MAG522w3 has two USB ports for your keyboard, mouse, and memory stick, enhancing the device's capabilities and making for more user-friendly controls.
Dimensions
Width/depth/height, (mm)
132x87x26
Weight, g
125
Hardware
Chipset
Amlogic S905X2
Processor
Quad-core ARM Cortex-A53, 1,900 MHz
Performance
18 400 DMIPS
RAM
1 GB DDR3
Flash memory
4 GB eMMC
Software
Operating system
Linux 4.9
Middleware supported
Pre-integrated Ministra TV platform. Image enhancement with operator’s applications, customization, or full replacement available

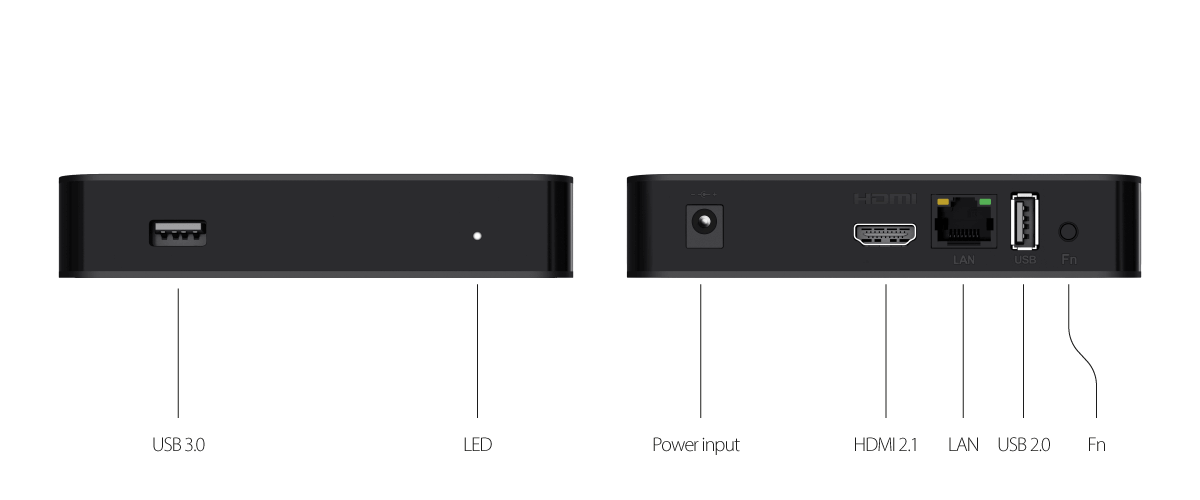

Interfaces
HDMI 2.1, 100 Mbps Ethernet, built-in 2T2R ac Wi-Fi module, USB 3.0 x 1, USB 2.0 x 1
Sources of media content
PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices
Audio & video
Audio codecs
MPEG L1/L2/L3, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™
Video modes
PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K)
Video сodecs
MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optionally), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
