IPTV Set-Top-Boxes > MAG544w3 x10 Pack
MAG544w3 x10 Pack

The product you selected is currently unavailable.

Orig. Price: $1,120.44
Sale Price: $896.35
Availability: in stock
Prod. Code: MAG544w3x10

Units will be shipped with regionally adapted power supplies.

No subscriptions, TV channels or any other video/audio content will be provided with purchasing of the unit.

Not for resale.

MAG544w3 x 5 pack MAG544w3 x 5 pack

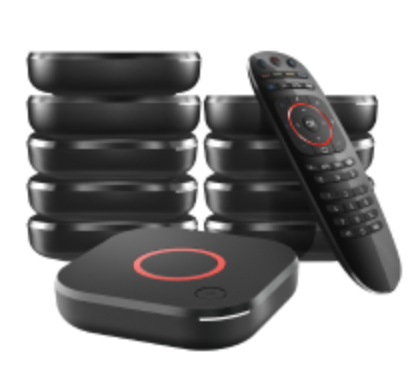

MAG544w3 x 10 pack

Infomir has prepared a special offer for IPTV/OTT operators: a set of 10 MAG544w3 devices. The pack format allows us to offer an optimal price for powerful modern set-top boxes that play content in all current video formats.
The MAG544w3 is built around an Amlogic S905Y4-B processor and Linux OS. The device is powerful and easy to maintain: the set-top box can work without restarting for several months, allowing users to enjoy their favorite shows and movies without worrying about settings.


The MAG544w3's software allows users to watch content in 4K HDR quality at a frame rate of 60 fps. With this model, you won't miss a thing, whether watching a sports match, action movie, or news report. In addition, the image will be in high resolution with vivid colors.


Support for Dolby Digital PlusTM technology lets users connect compatible equipment such as modern TVs or stereo systems to the set-top box, so they can enjoy pure surround sound just like in a movie theater.


The set-top box has cable and wireless connection options. The device can be connected to the Internet via the Ethernet port, providing users with a reliable connection with data transfer rates of 100 Mbps. For those who value minimalism in the interior, the Wi-Fi connection option is suitable as it avoids the use of wires. The Wi-Fi module operates in two frequency bands: 2.4 GHz (up to 100 Mbps) and 5 GHz (up to 550 Mbps).


The MAG544w3 can be connected to a variety of peripherals, thanks to the presence of two USB 2.0 ports. These can be used to connect a mouse or a keyboard, allowing users to control the set-top box and enter text faster and more comfortably. Users can also connect memory cards and other removable media to the set-top box.


By purchasing a set of ten devices, you save money and get a productive set-top box that meets all market requirements. To order a pack of 10 MAG544w3 set-top boxes, please contact our manager.


Width/depth/height, (mm) 115x115x28
Weight, g 170
Chipset Amlogic S905Y4
Processor Quad-core ARM Cortex-A35, 2,000 MHz
Performance 16 500 DMIPS
Flash memory 4 GB eMMC
Operating system Linux 4.9
Middleware supported Pre-integrated Ministra TV platform. Image enhancement with operator’s applications, customization, or full replacement available
  HDMI 2.1, 100 Mbps Ethernet, USB 3.0 × 1, USB 2.0 × 1, built-in 2T2R ac Wi-Fi module
Sources of media content
  PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices
Audio & video
Audio сodecs
Audio formats MP3, MPA, M4A, OGG, WAV, AAC
Video modes 2160p, 1080i, 1080p, 720p, 576p, NTSC, PAL
Video сodecs AV1, H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support
Video containers TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP
Image formats JPEG, PNG, BMP, RAW
Subtitles DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captioning
Playlist formats M3U, M3U8, PLS, CUE


Standard set
  10 x MAG544w3 set-top boxes, user manual, HDMI cable, power adapter, remote control, 2x AAA batteries, packaging
